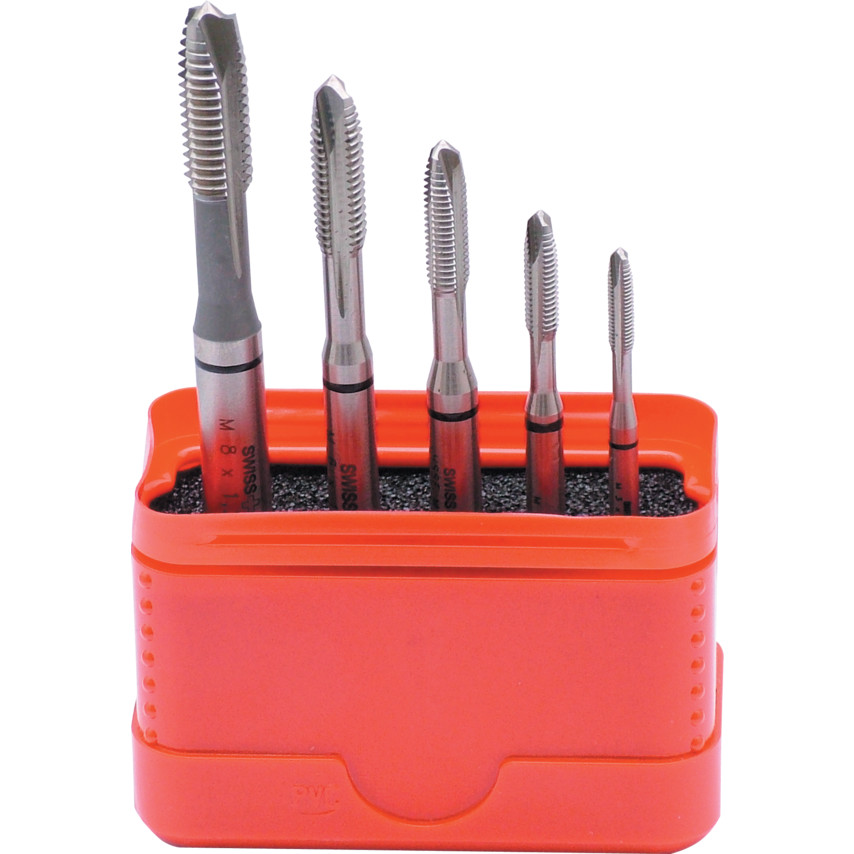

Black Ring Tap Set, Spiral Point, M3 To M8, Metric Coarse, Set Of 5

Code: SWT1859900X

5 Pieces For through holes Suitable for steels, low alloy steels, stainless steels and non-ferrous materials Taper lead to DIN form B Tapping tolerance to 6H DIN 371/376Contents:M3 x 0.5mm. Thread length: 2.5mmM4 x 0.7mm. Thread length: 3.3mmM5 x 0.8mm. Thread length: 4.2mmM6 x 1.0mm. Thread length: 5.0mmM8 x 1.25mm. Thread length: 6.8mm

In Stock


5 Piece Tap Set – M3 – M8 Spiral Point/Gun Nose | ‘Black Ring’ machine taps for general tapping applications suitable for steels, low alloy steels, stainless steels and non-ferrous materials. Manufactured to DIN371/376. Tapping tolerance to 6H. | | M3 – M8 Spiral Point/Gun Nose | Spiral Point/Gun Nose – HSS-E Bright Finish. For through holes. Taper lead to DIN form B. | | Contents: | Pitch size: M3 x 0.5mm. Thread length: 2.5mm. | Pitch size: M4 x 0.7mm. Thread length: 3.3mm. | Pitch size: M5 x 0.8mm. Thread length: 4.2mm. | Pitch size: M6 x 1.0mm. Thread length: 5.0mm. | Pitch size: M8 x 1.25mm. Thread length: 6.8mm. | | The tool geometry (with up to 138 parameters) has been developed and optimised during long-term tests in co operation with users for the different sections of structural steel, aluminum casting, machining steel, VA steels, heat-resistant steels and tool steels. Selected hard coatings increase the range of applications. The objective of developing Swiss+Tech’s ‘Black Ring’ Taps was the realisation of narrower tolerances and more efficient cutting times | for the thread production. | The unique general purpose properties of these taps guarantee high productivity by reducing the amount of time spent changing taps for different materials and at the same time reduces the number of taps required by the machine shop. | Swiss+Tech ‘Black Ring’ machine taps with their wide range of applications are the result of years of experience in metal cutting. Responsible for our developments were the following demands from our main customers: | • Increase of a tap’s versatility. | • Reducing the confusing type variety. | • Reducing the storage costs for the tools. | • Reducing the tool changing times. | For general tapping applications. For production tapping of specific materials a specialist tap may be more suitable. | Manufactured to DIN 371/376.
